Armstrong Surf Foil Board

Armstrong Surf Foil Board

The Surf foil board is a 100% surf-dedicated shape that offers exceptional responsiveness and paddling ease. Designed for both skill-building and advanced performance, this versatile board features a stable outline for comfortable popping up and a highly maneuverable design for taking on challenging carves and whitewater conditions. With minimal volume and a rigid construction, the Surf provides a direct connection to the foil for instant feedback and control.

Six sizes from 3’11" (20L) to 4’11 (48L).

From the shaping bay

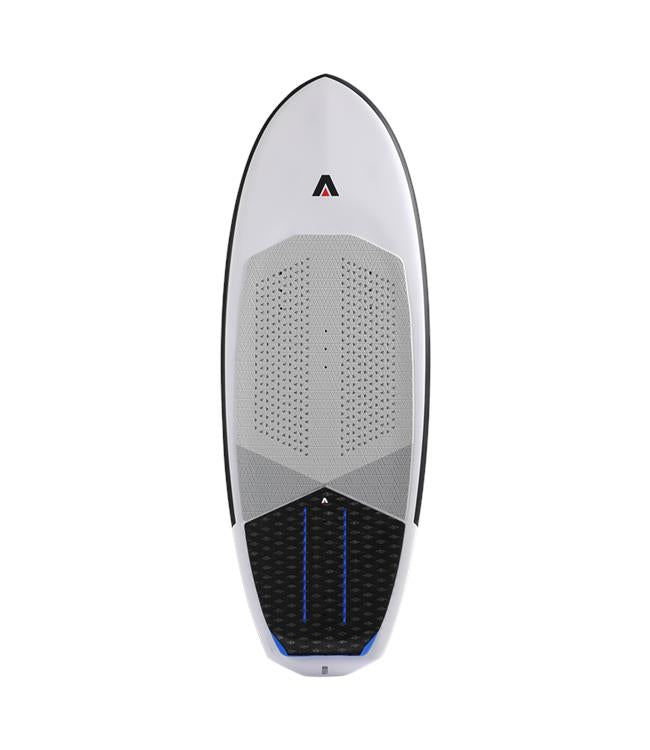

• Outline: The Surf is a ground-up fresh outline from our prior surf-oriented boards. Its outline is surfboard inspired, particularly in the full nose where that extra foam boosts paddling comfort by supporting the chest. The rails gradually pull down into a squared off tail that provides ample width for quick foot placement in critical drops. The width in each size balances stability with rippability when on a rail for an outline that is user friendly yet thoroughly high-performance.
• Rocker, rails, and deck: The rocker line is generally flat with a slight kick in the nose for easy, efficient paddling. A flat deck and full rails provide a volume distribution throughout the board that enables reduced thickness in each size. Being thin and stiff creates a much more direct sensation of the foil itself, boosting the rider’s connection to the wave.

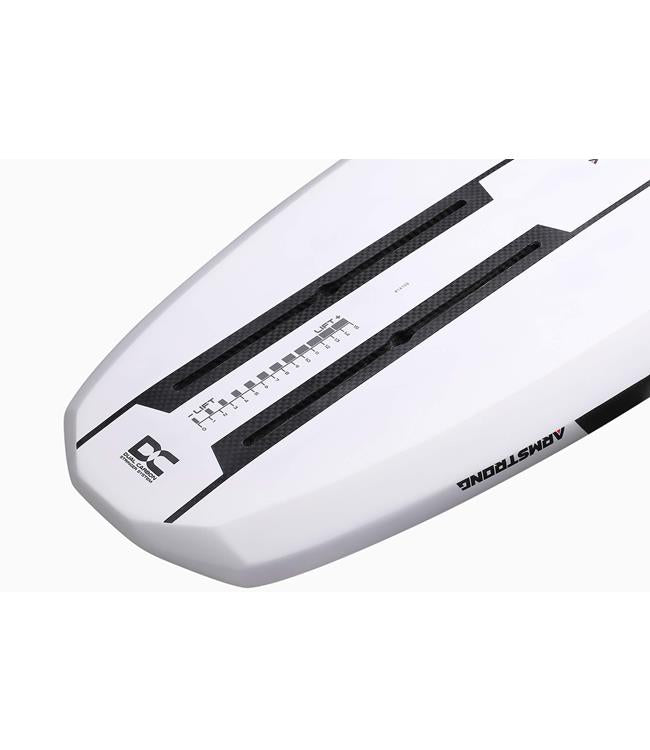

• Bottom and foil tracks: This board was designed to be ridden on the water in line with the most progressive surf foiling style. Its subtle double concave to v-tail bottom contours promote efficient water flow and minimizes stiction to the water surface, benefitting learners and experts smashing the foam ball alike. Unlike our Forward Geometry boards, the Surf’s carbon foil tracks are located more aft to achieve a balanced mast placement due to the shorter board length.

More grip, more control

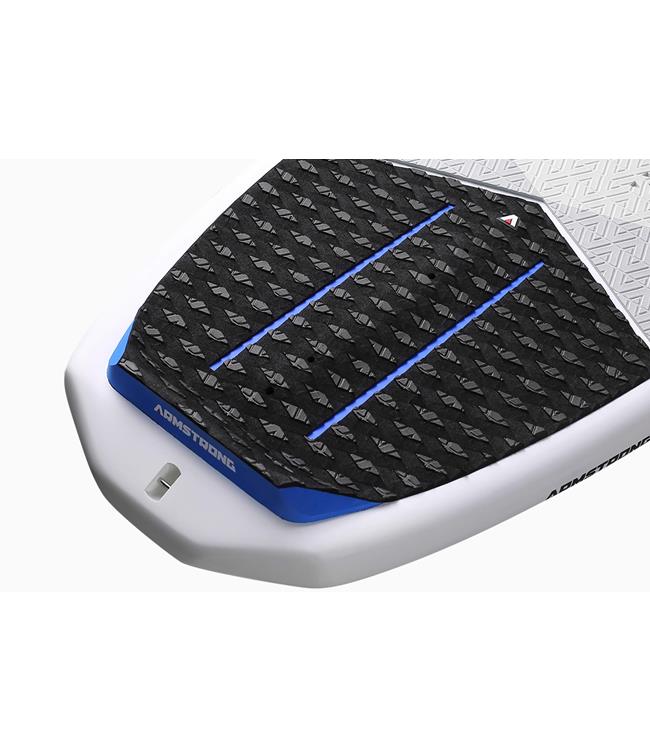

The Surf's deck grip is designed to offer both control and comfort for optimal performance in the surf. It features micro-cutouts for secure grip during strapless maneuvers and a full width kick pad for extra traction and foil track placement indicators. The grip also includes holes for easy access to footstrap screw inserts.

Proven construction

The ultra stiff double skin PVC sandwich combined with Armstrong’s reputed i-beam top to bottom dual stringers provides maximum structural rigidity and durability. Proprietary carbon fiber foil tracks are keyed directly into the string fibers for a fully integrated construction.

- 28L: 4'3 / 129cm x 18 1/8” / 46cm x 2 3/8” / 6cm - Weight TBC
- 32L: 4'5 / 135cm x 18 1/2" / 47cm x 2 5/8” / 6.6cm - Weight TBC
- 36L: 4'7 / 140cm x 19” / 48.2cm x 2 3/4” / 7cm - Weight TBC
- 42L: 4'9 / 144.7cm x 19 5/8” / 50cm x 3” / 7.6cm - Weight TBC
